THE PRODUCT COLLECTION
The right display
For your next idea

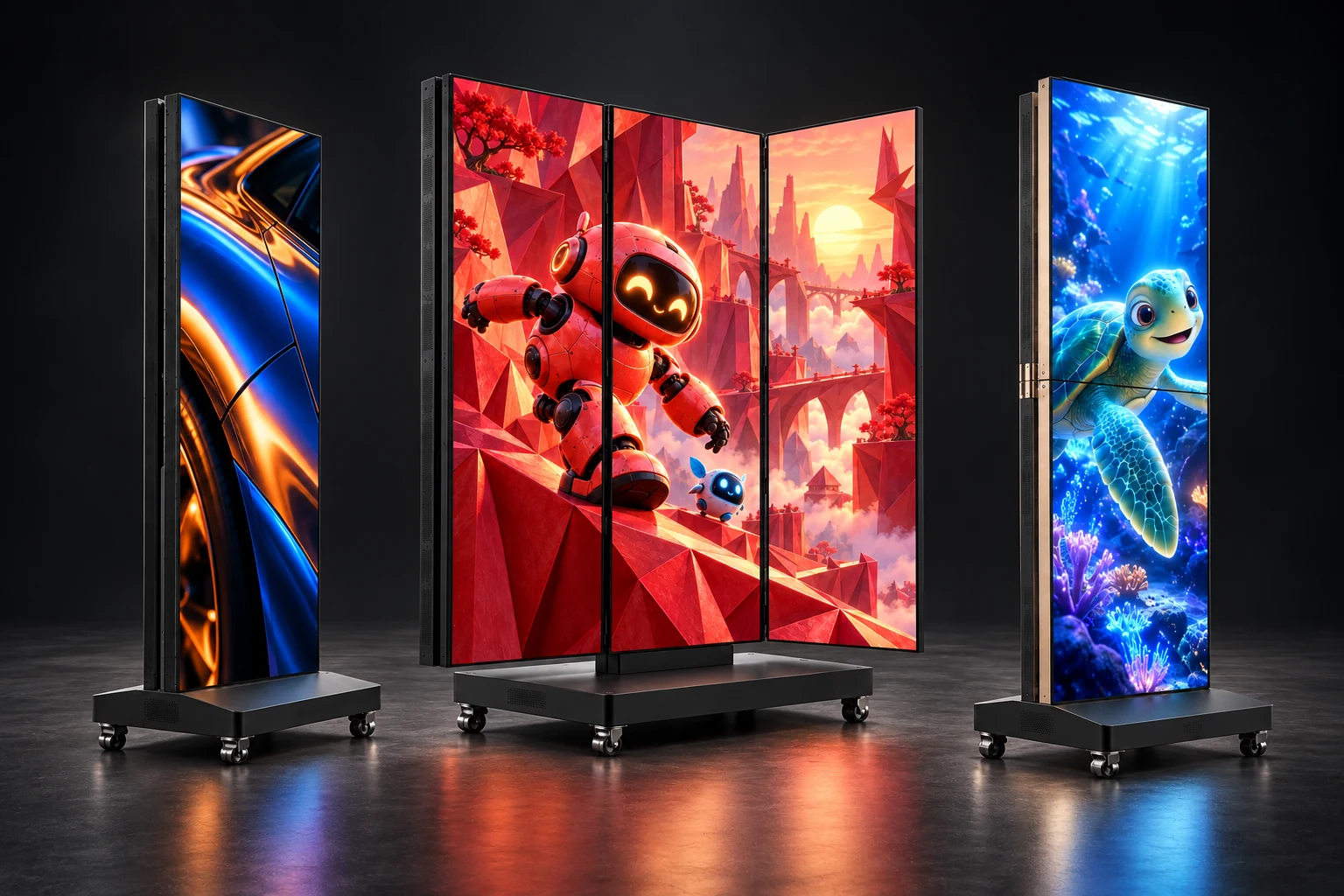

From folding LED posters to fixed video walls, rental cabinets and creative displays. Explore 28 models and series, including 4K LCD signage, and find the format for your project.
LED · Floor-standing
HB-X2.5
2.5 mm pixel pitch LED poster display with a 640 × 1920 mm active area, GOB protective process and mobile wheeled base.
2.5 mm
LED · Floor-standing
HB-X1.86
1.86 mm pixel pitch LED poster display with a 640 × 1920 mm active area, GOB protective process and mobile wheeled base.
1.86 mm
LED · Floor-standing
HB-X1.53
1.538 mm pixel pitch LED poster display with a 640 × 1920 mm active area, GOB protective process and mobile wheeled base.
1.538 mm
LED · Floor-standing
HB-X1.25
1.25 mm pixel pitch LED poster display with a 640 × 1920 mm active area, GOB protective process and mobile wheeled base.
1.25 mm
LED · Floor-standing
Tri-fold LED Poster
A three-panel indoor LED poster with a 1280 × 1920 mm display area for retail campaigns, exhibitions and larger portrait content.
1280 × 1920 mm
LED · Floor-standing

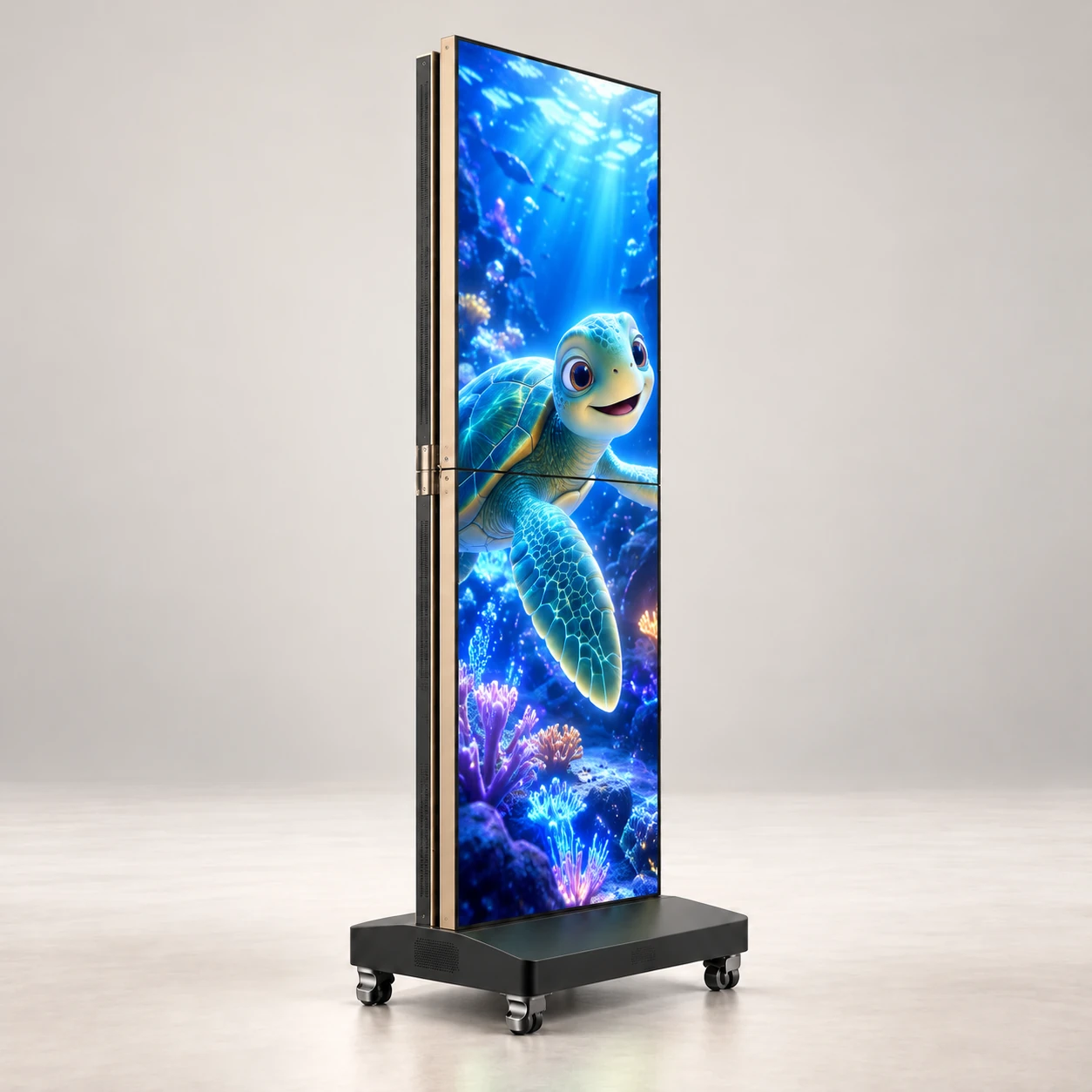

Vertical-fold LED Poster
An indoor LED poster that folds vertically, combining a 640 × 1920 mm portrait display with a format suited to temporary retail and event installations.
640 × 1920 mm
LED · Floor-standing

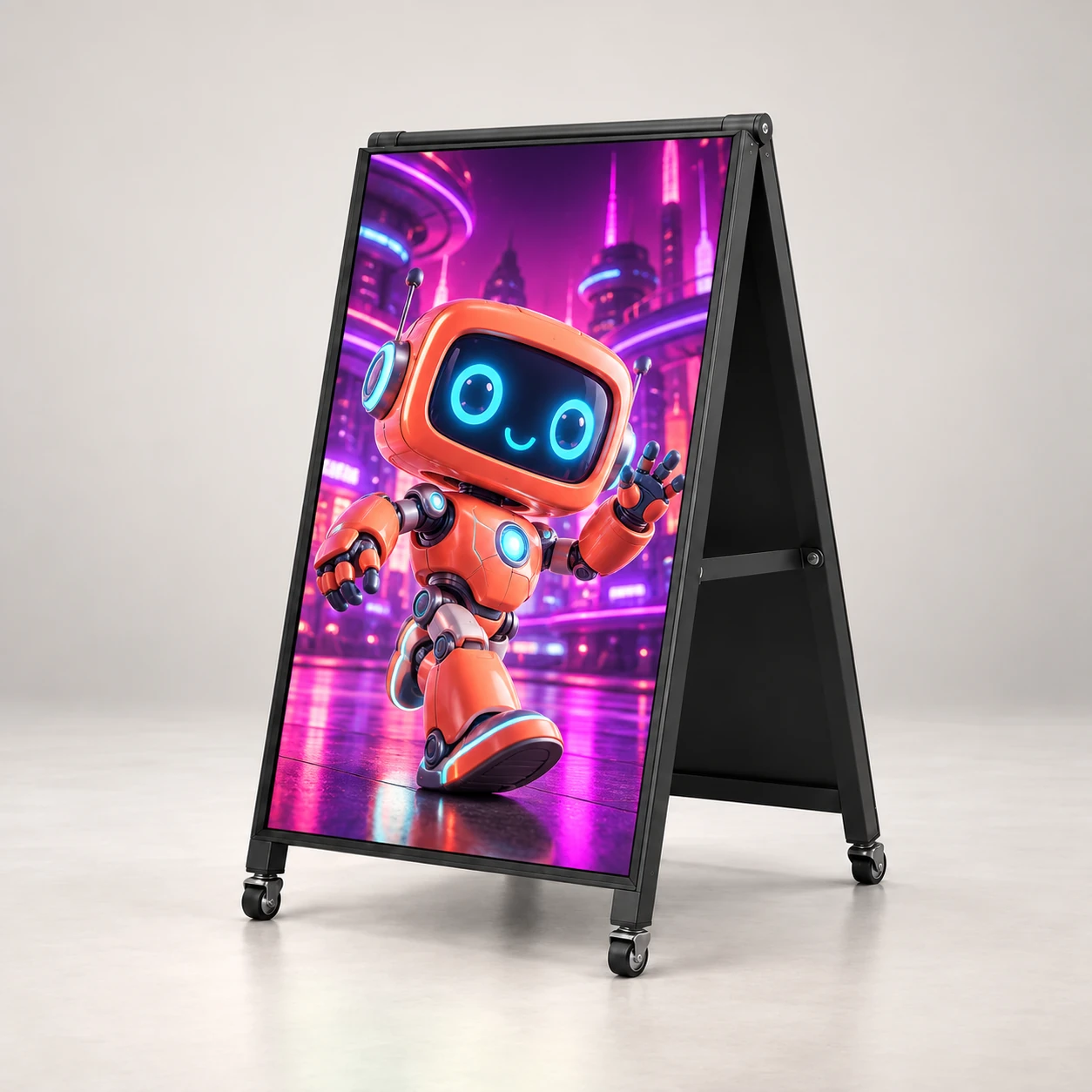

Compact Mobile LED Board
A compact 640 × 960 mm indoor LED display board for store entrances, directional content and promotional messages in space-conscious layouts.
640 × 960 mm
LED · Floor-standing

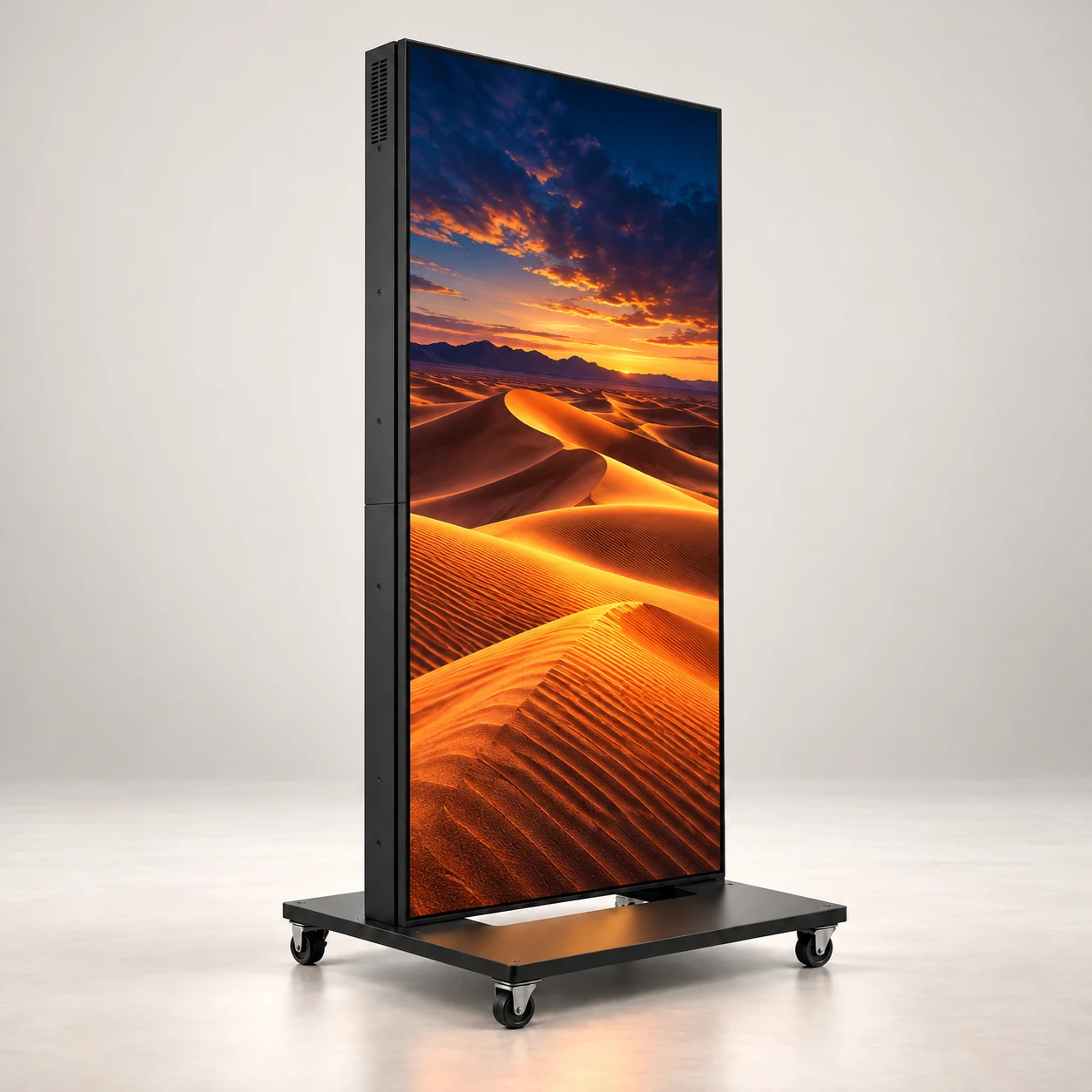

Outdoor LED Poster
A movable outdoor LED poster with a 960 × 1920 mm cabinet for commercial advertising, with pixel pitch choices from 2 to 5 mm.
960 × 1920 mm
LED · Fixed installation

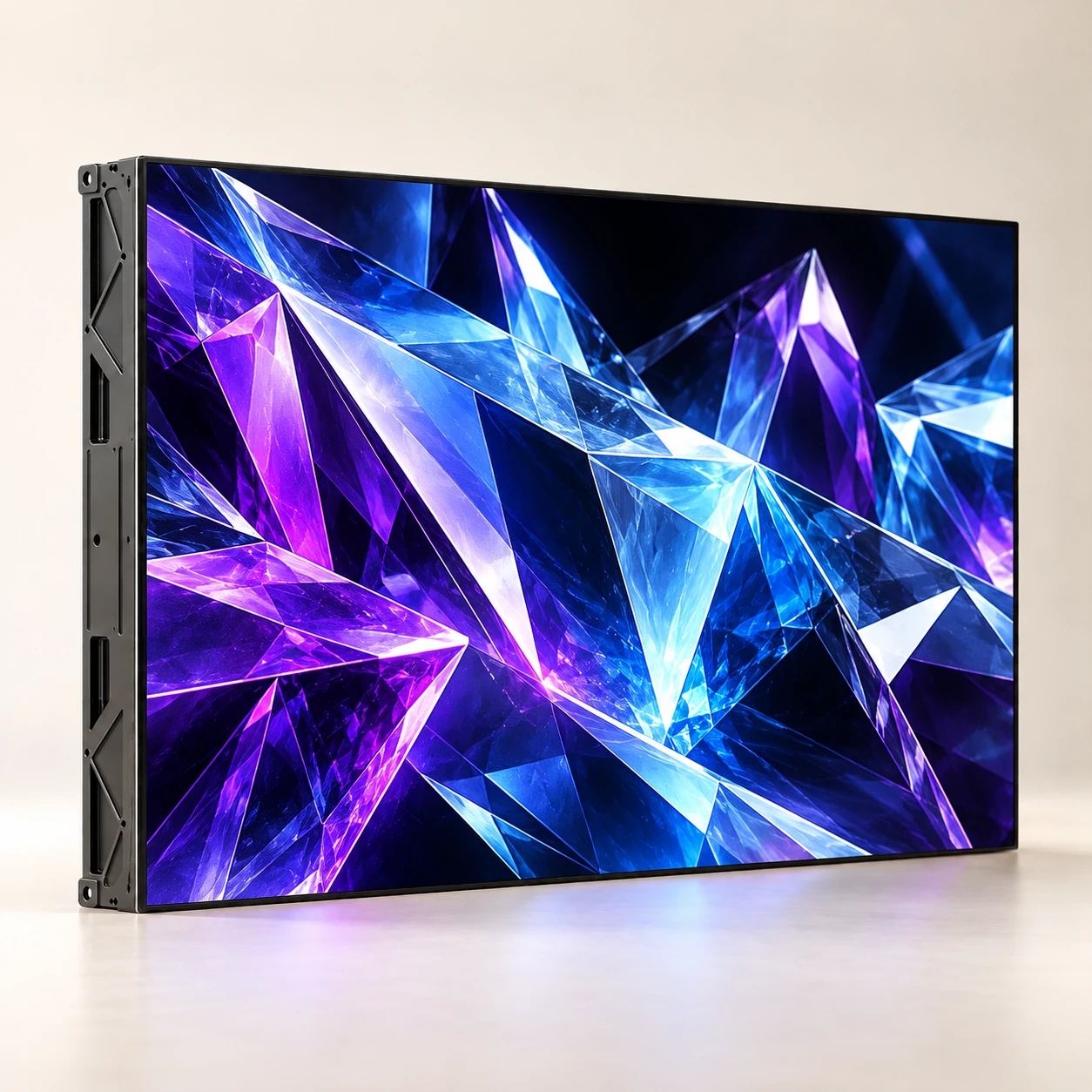

Fashion Indoor LED Display
A front-service indoor LED cabinet in a 640 × 480 mm format for commercial video walls, corner layouts and close-viewing installations.
640 × 480 mm
LED · Rental assembly
Mars Rental LED Display
A modular rental LED display series for temporary event builds, with front and rear maintenance access and quick-connect power and signal connections.
Rental LED displays
LED · Fixed installation

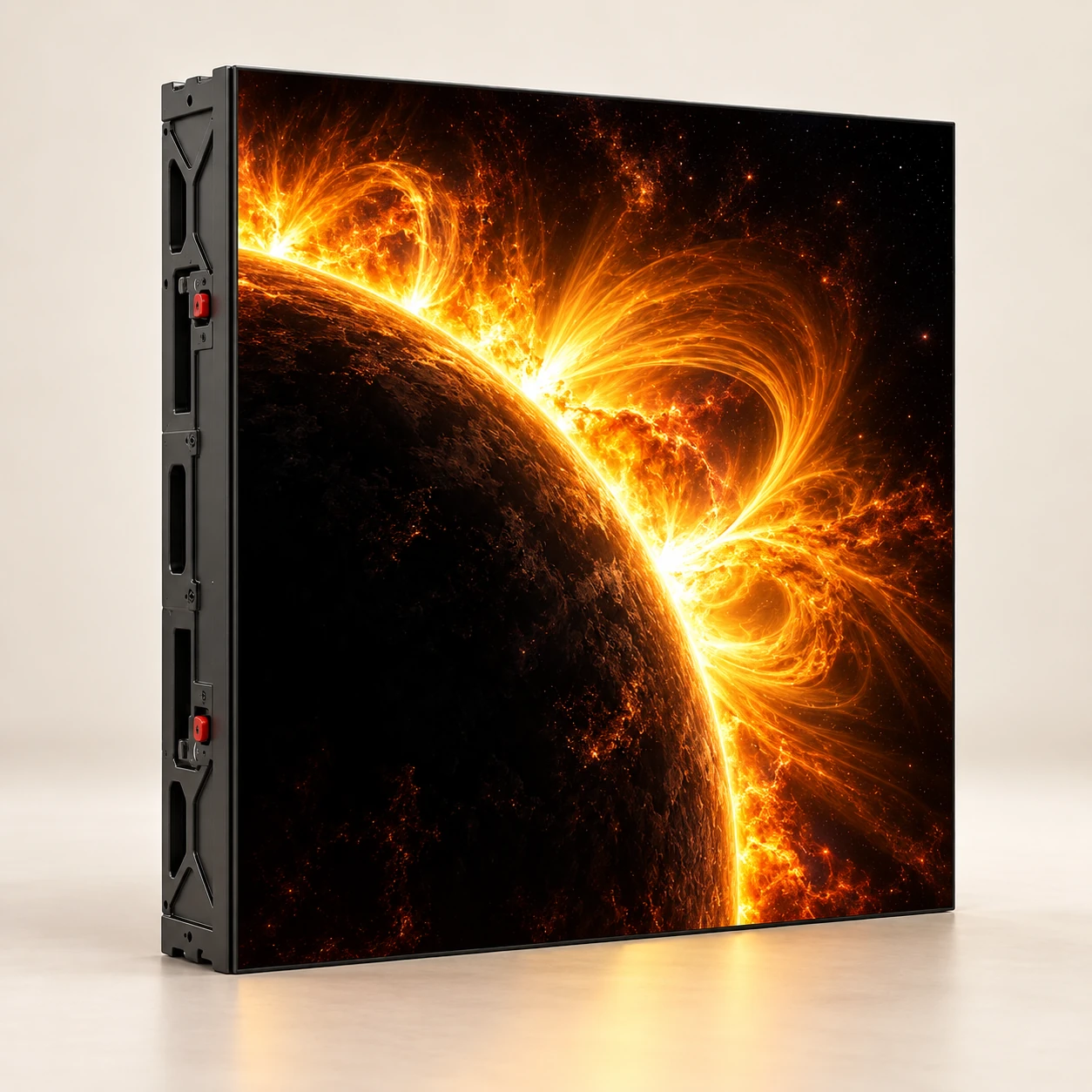

Energy-saving Outdoor LED Display
An outdoor fixed-installation LED series with 1000 × 1000 mm cabinets and 500 × 250 mm modules for large advertising walls.
1000 × 1000 mm
LED · Rental assembly

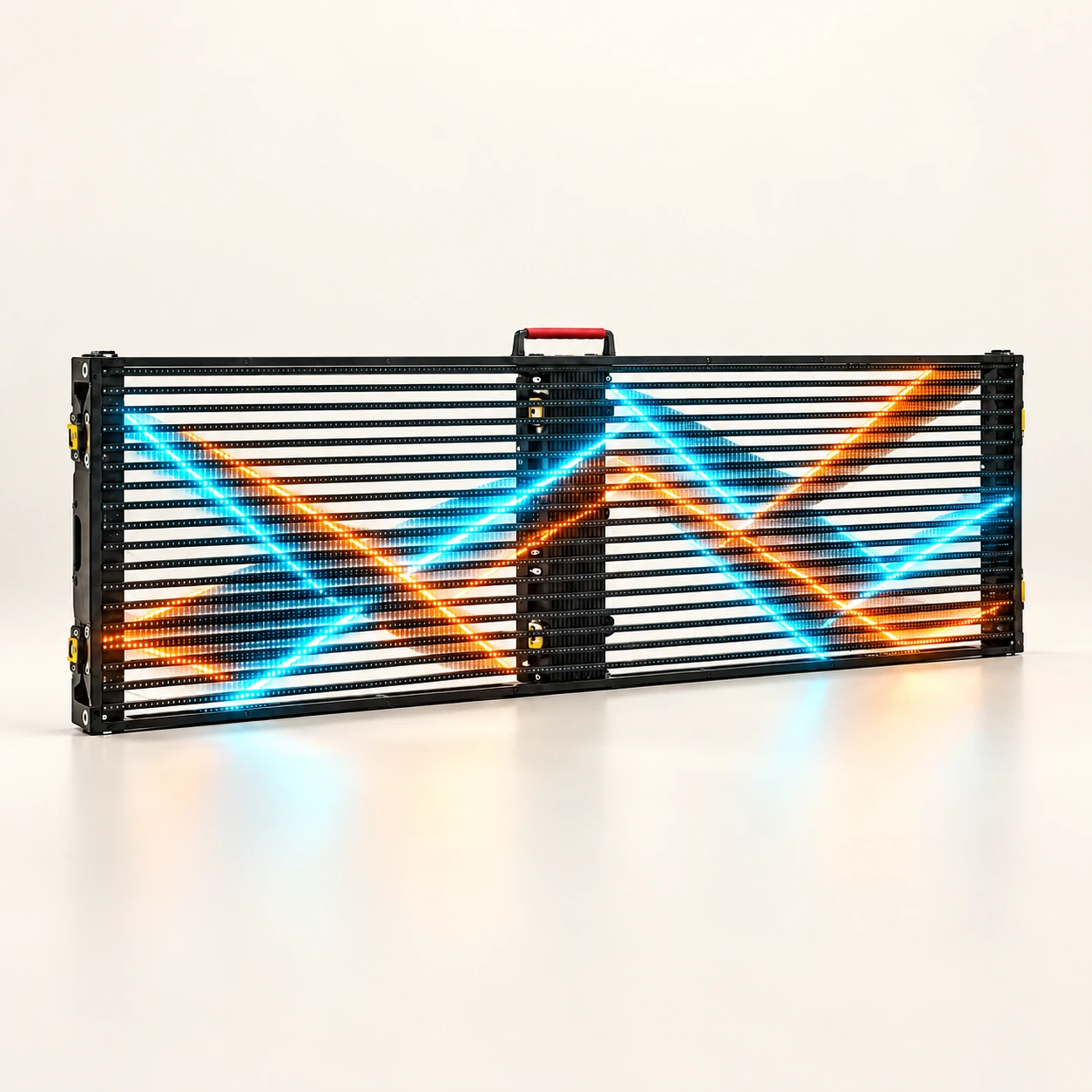

Transparent Rental LED Display
A transparent-format LED rental series for event designs that combine digital content with an open visual structure.
Rental LED displays
LED · Custom structure

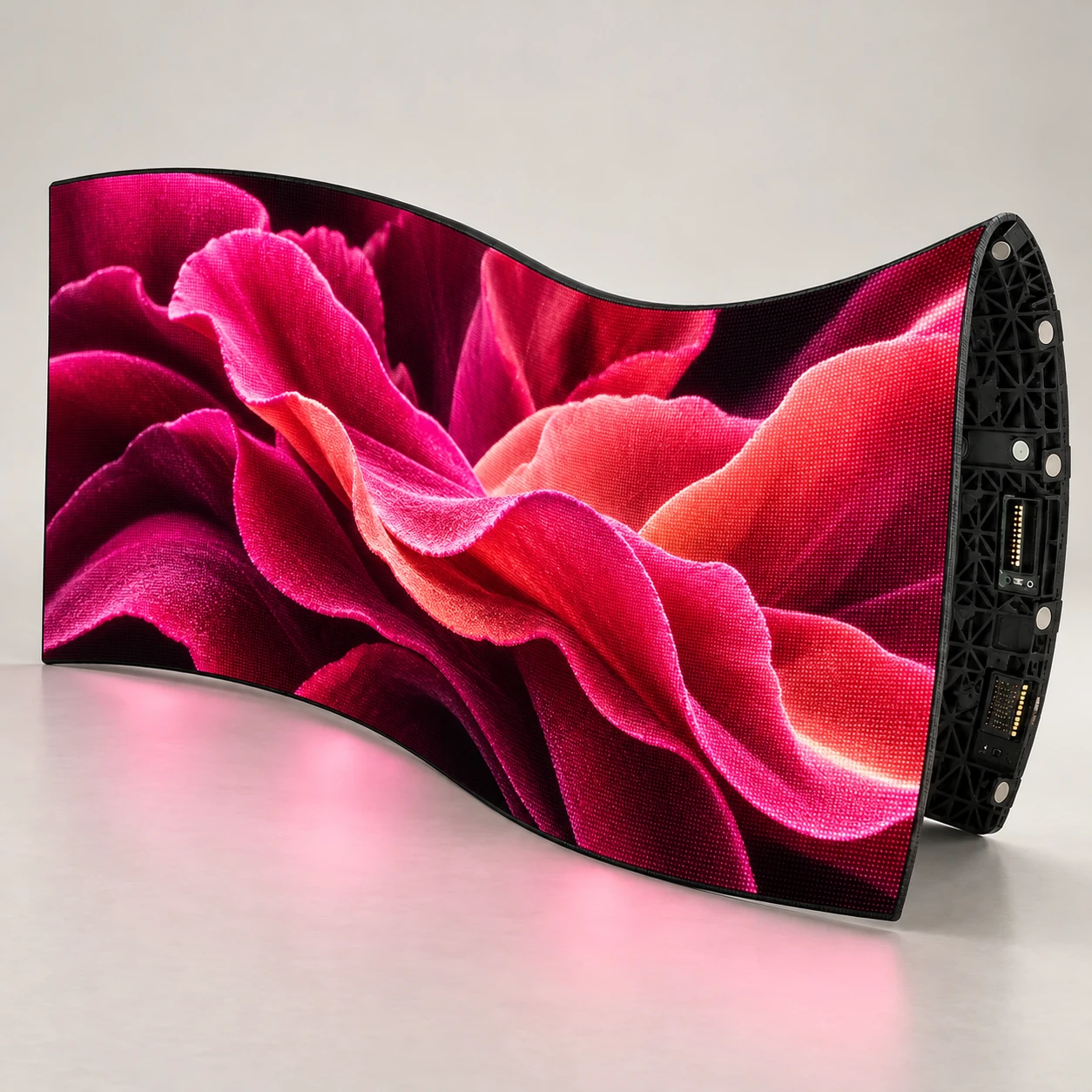

Flexible LED Display
Flexible indoor LED modules for curved walls, columns and shaped display surfaces, with multiple fine-pitch options and custom module sizing.
Creative LED displays
LED · Custom structure
Sphere LED Display
An indoor spherical LED display for immersive installations, exhibition focal points and content designed around a three-dimensional surface.
Creative LED displays
LED · Rental assembly

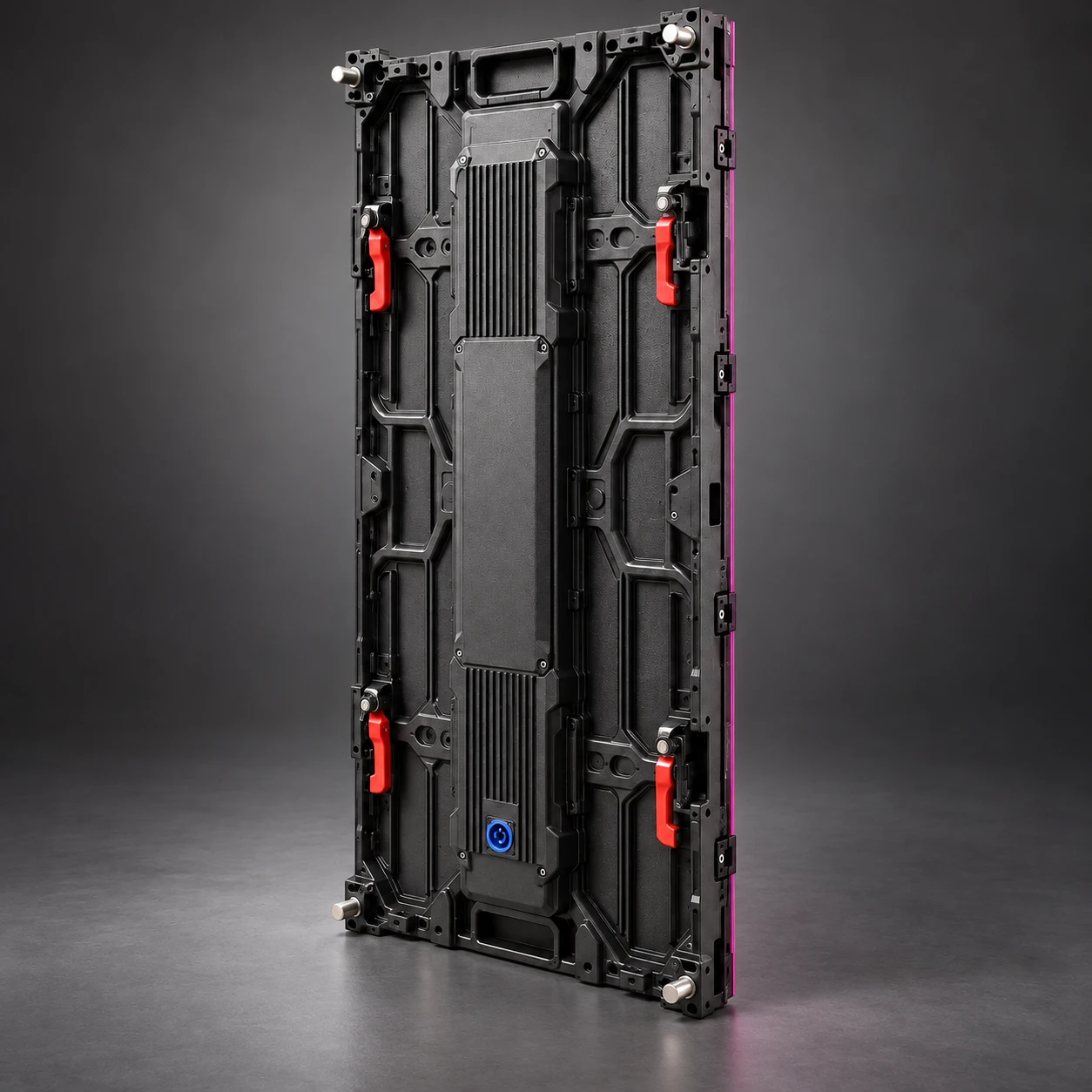

Venus Rental LED Display
A rental LED cabinet series for modular event screens, with quick-connect electrical interfaces and access from both sides for maintenance.
Rental LED displays
LED · Rental assembly

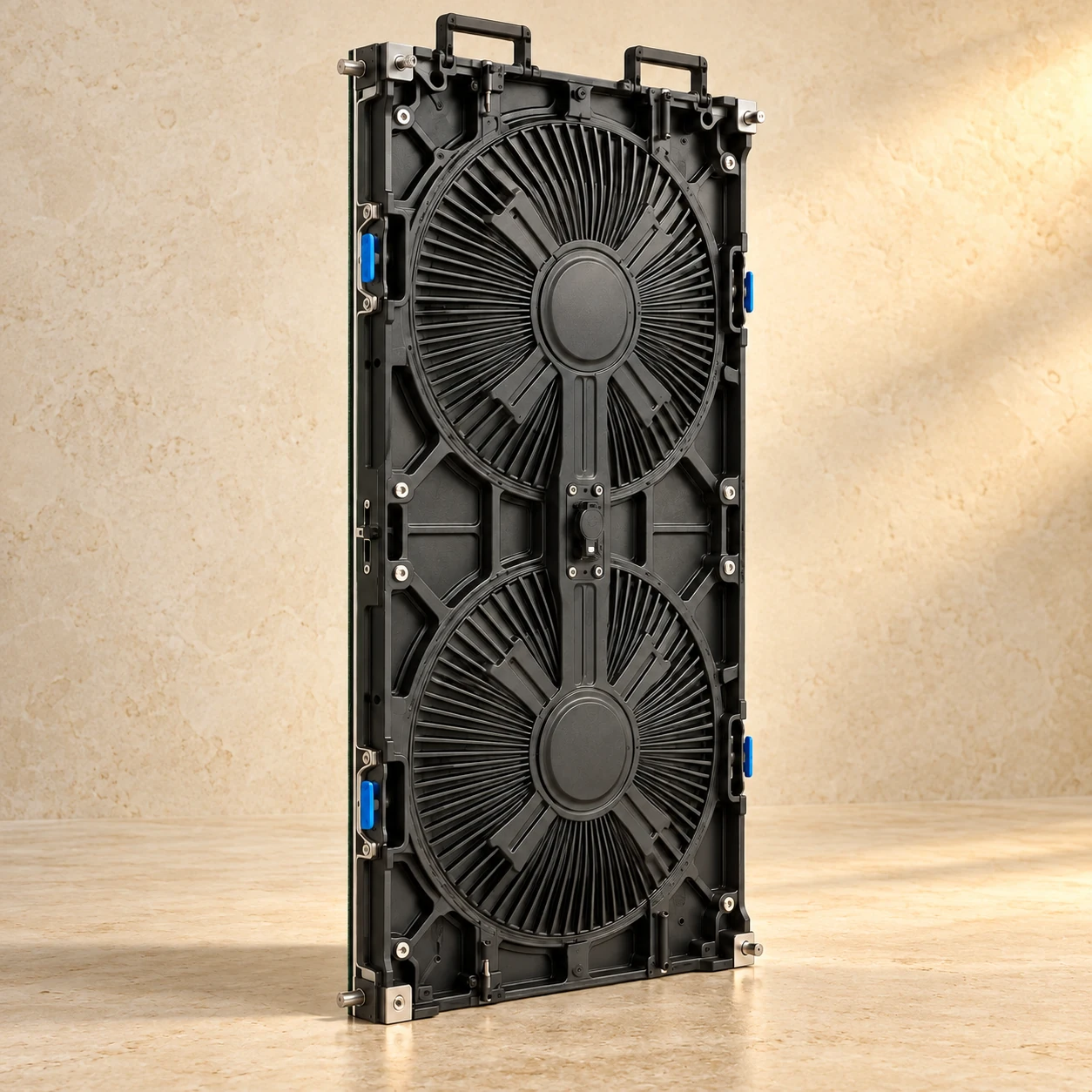

Saturn Rental LED Display
A modular LED display series for rental projects that need serviceable cabinets, repeat assembly and coordinated power and signal connections.
Rental LED displays
LED · Fixed installation
Rock Outdoor LED Display
An outdoor LED cabinet series for fixed advertising installations, with 960 × 960 mm and 960 × 800 mm cabinet options.
Fixed LED displays
LED · Fixed installation

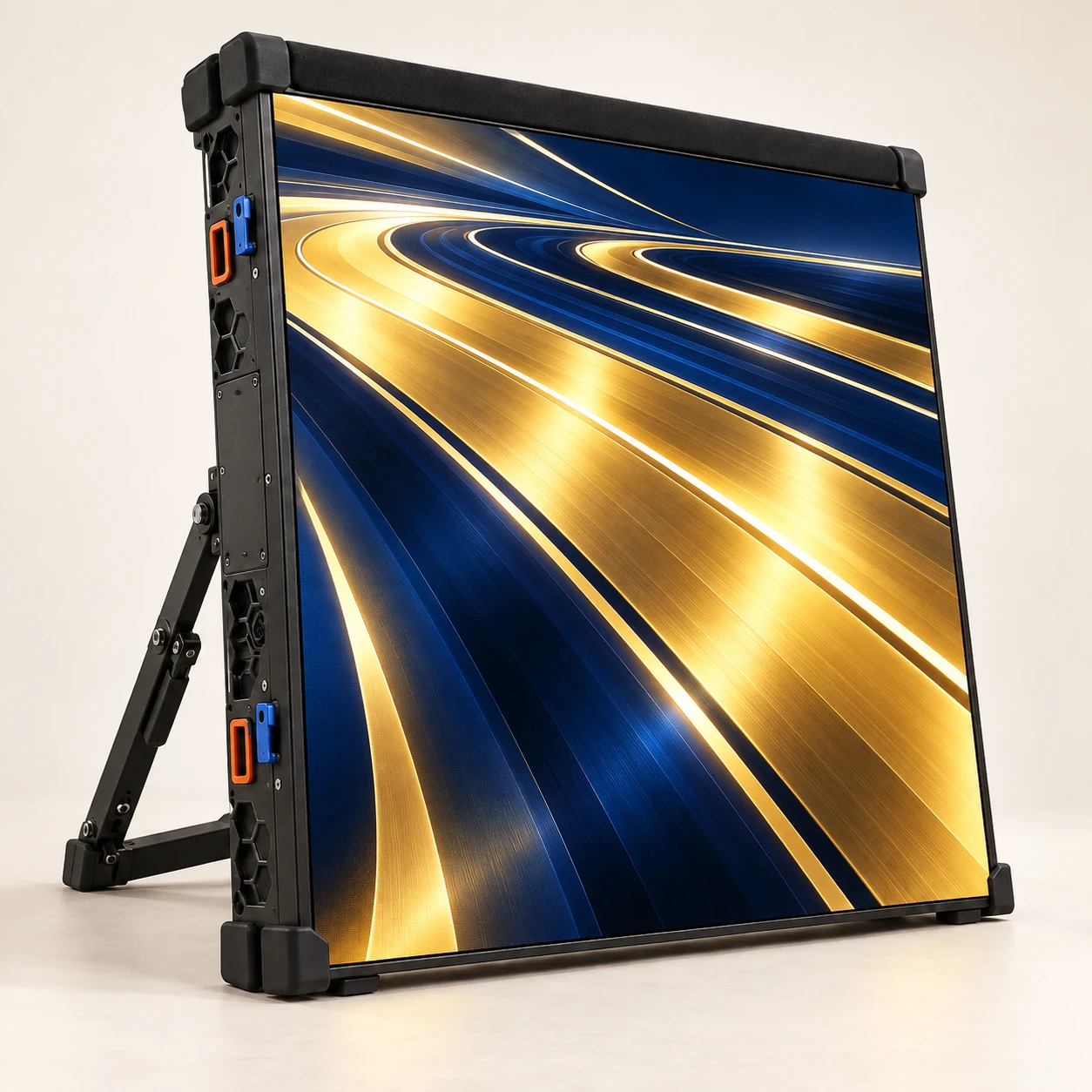

Stadium Perimeter LED Display
A stadium perimeter LED display with a soft mask, rear maintenance access and 960 × 960 mm cabinets for sports advertising layouts.
960 × 960 mm
LCD · Floor-standing

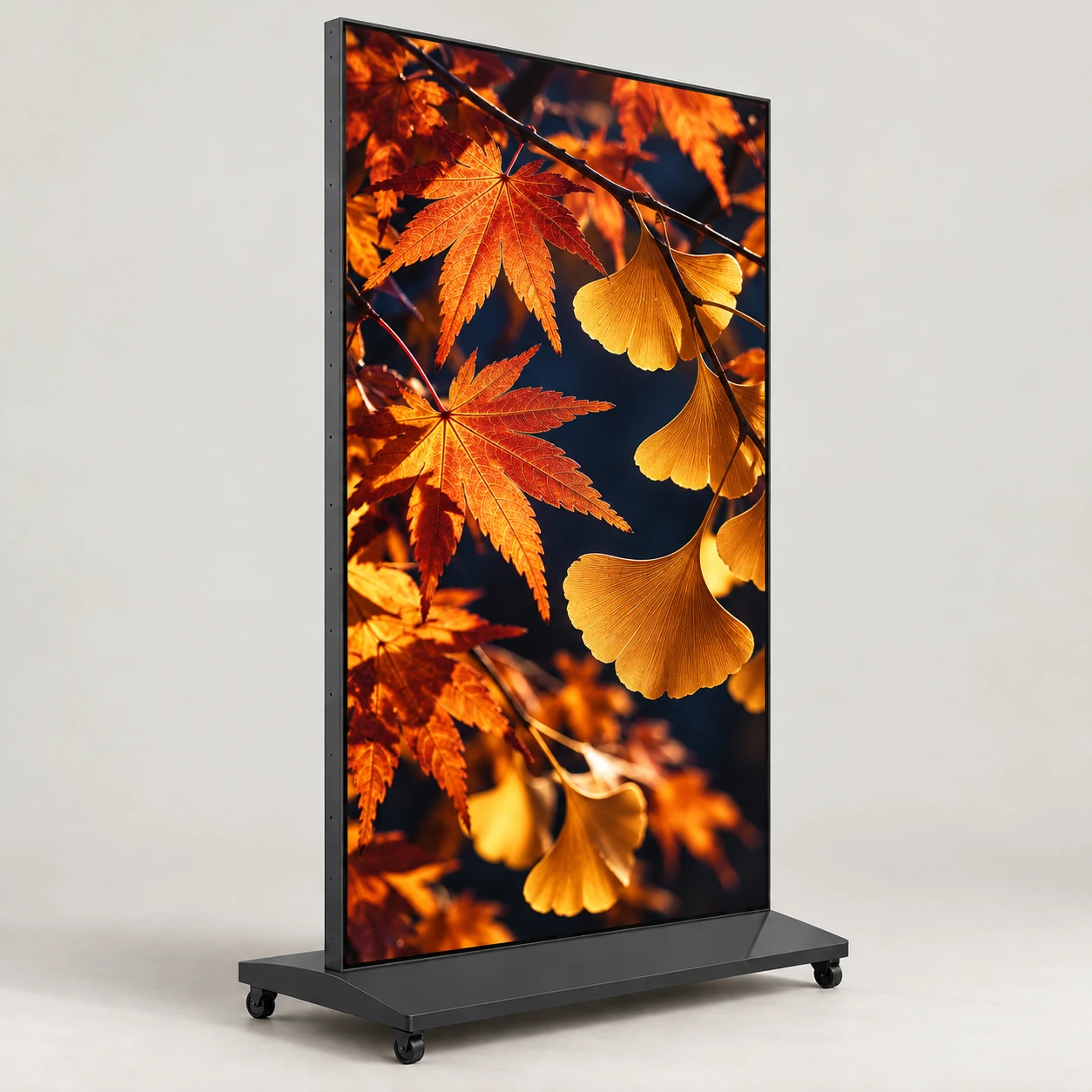

75-inch Floor-standing LCD
75-inch 4K floor-standing LCD signage with a portrait screen, wheeled base and Android 11 content system.
75 inches
LCD · Floor-standing

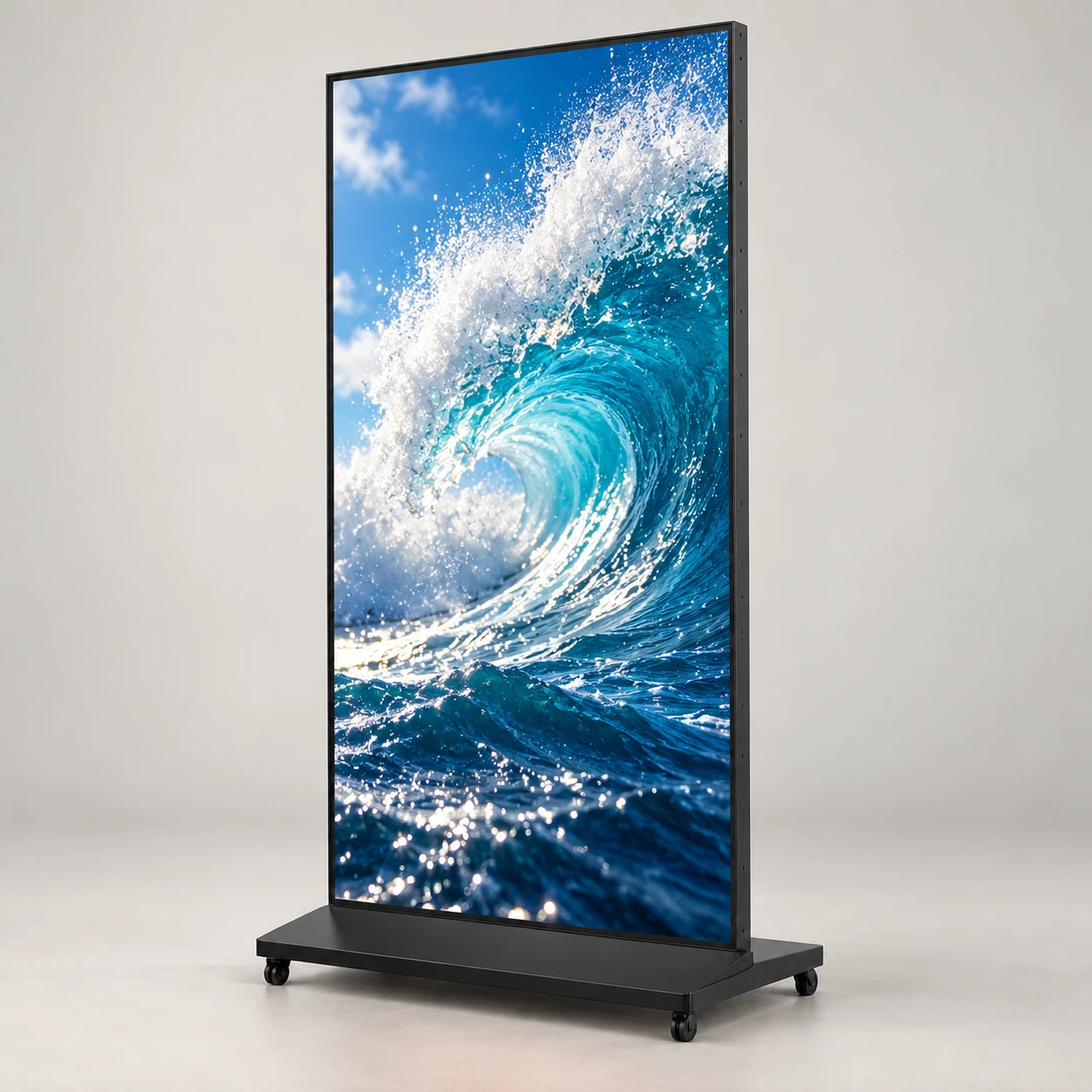

85-inch Floor-standing LCD
85-inch 4K floor-standing LCD signage with a portrait screen, wheeled base and Android 11 content system.
85 inches
LCD · Floor-standing

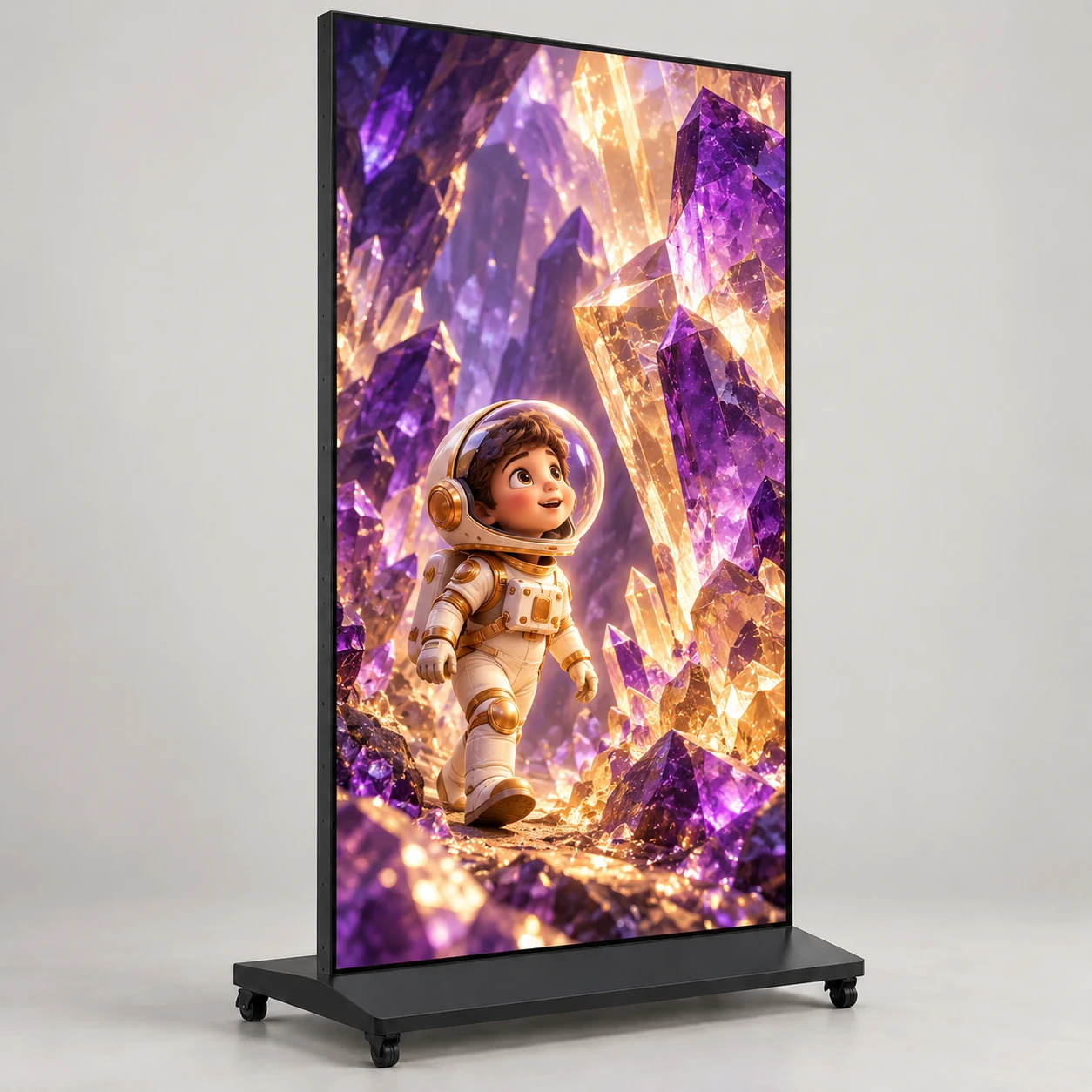

98-inch Floor-standing LCD
98-inch 4K floor-standing LCD signage with a portrait screen, wheeled base and Android 11 content system.
98 inches
LCD · Wall-mounted

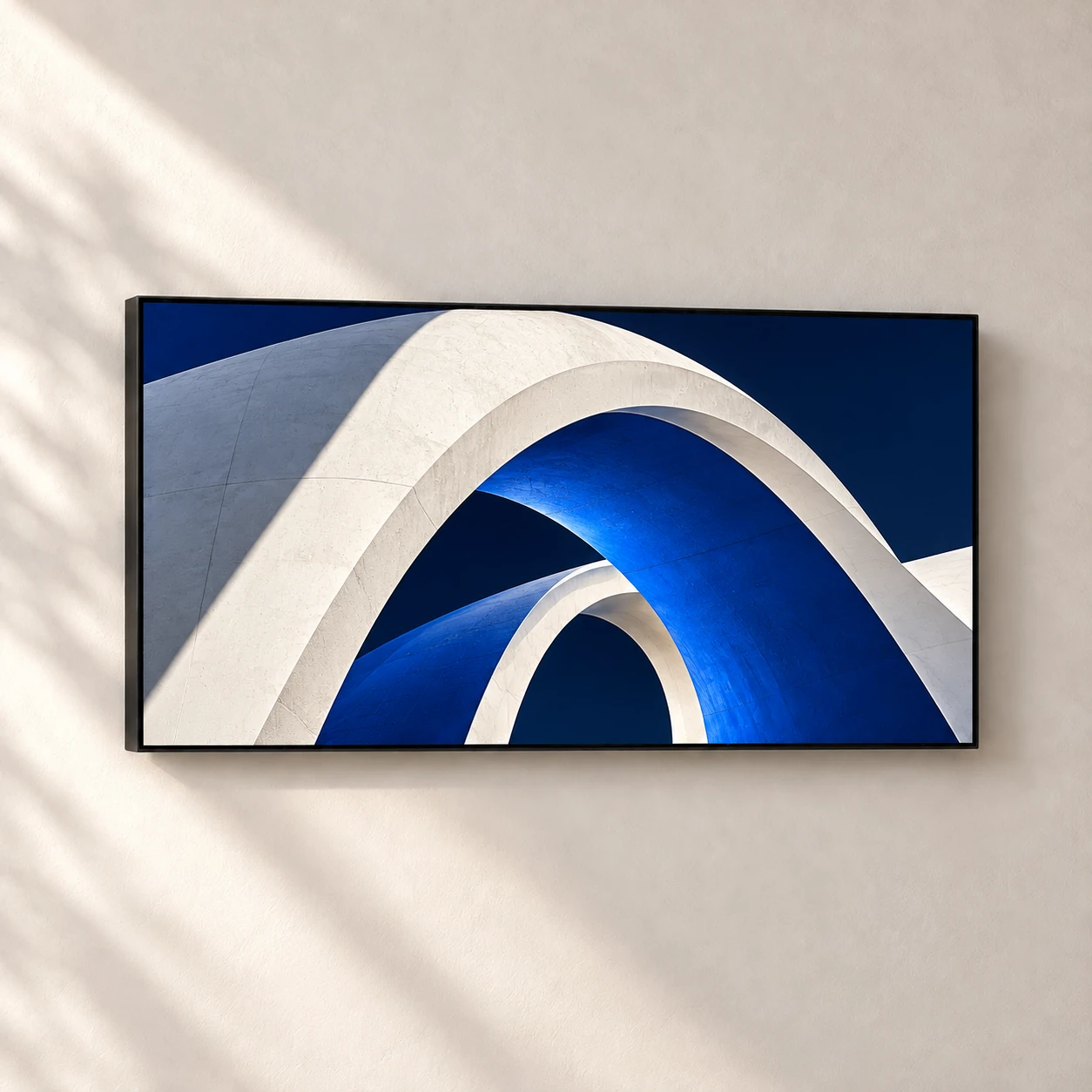

43-inch Wall-mounted LCD
43-inch 4K wall-mounted LCD signage for landscape or portrait placement with an Android 11 content system.
43 inches
LCD · Wall-mounted

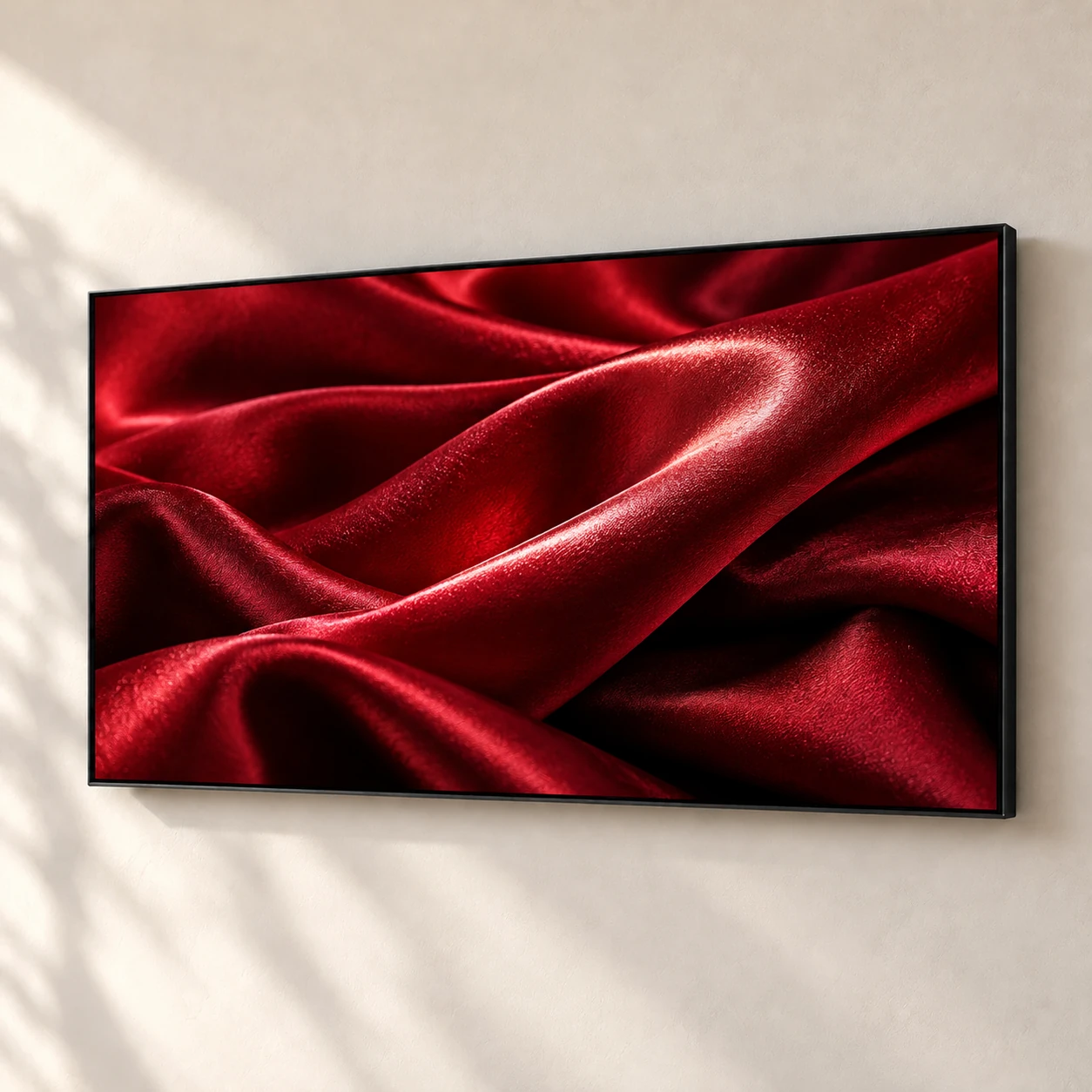

50-inch Wall-mounted LCD
50-inch 4K wall-mounted LCD signage for landscape or portrait placement with an Android 11 content system.
50 inches
LCD · Wall-mounted

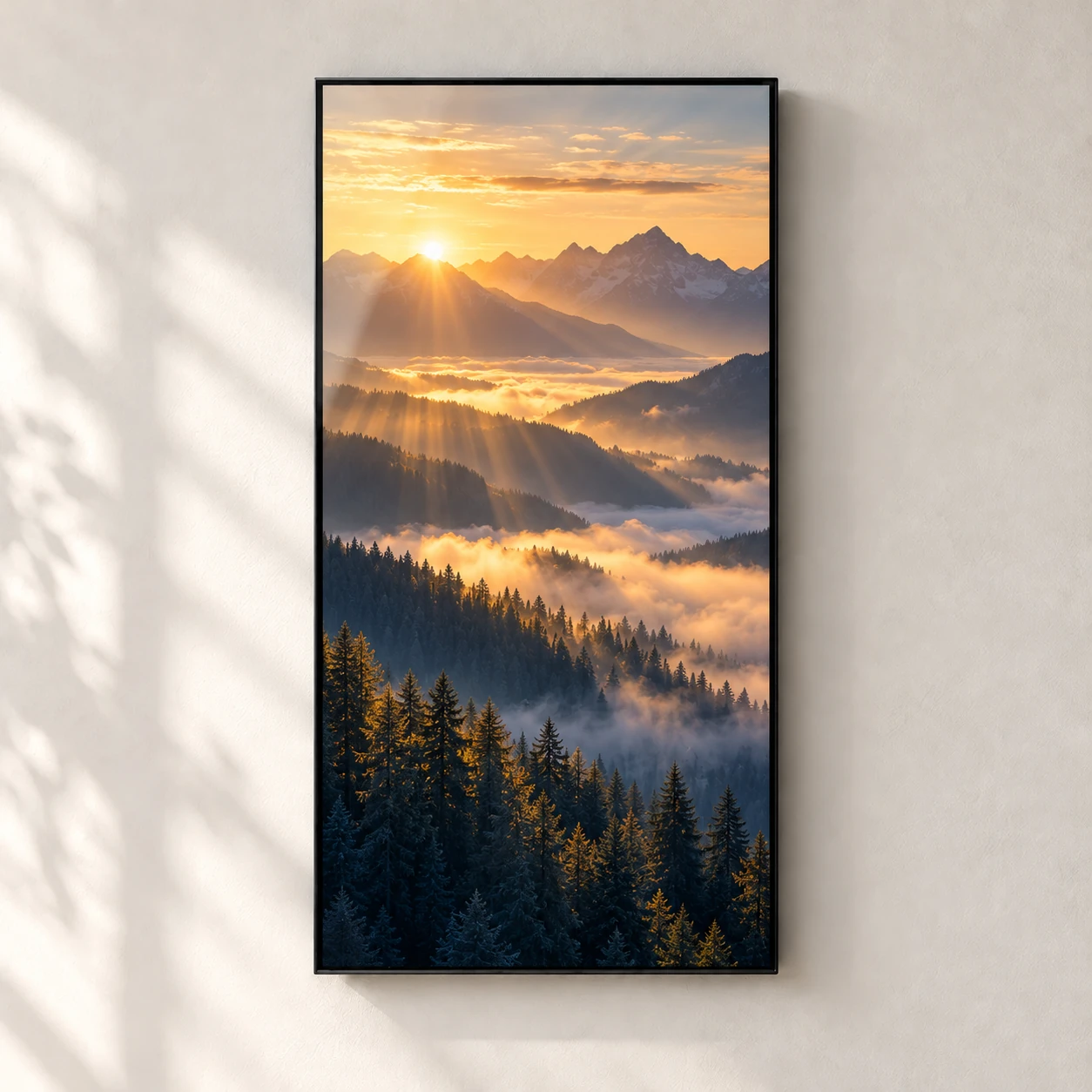

55-inch Wall-mounted LCD
55-inch 4K wall-mounted LCD signage for landscape or portrait placement with an Android 11 content system.
55 inches
LCD · Wall-mounted

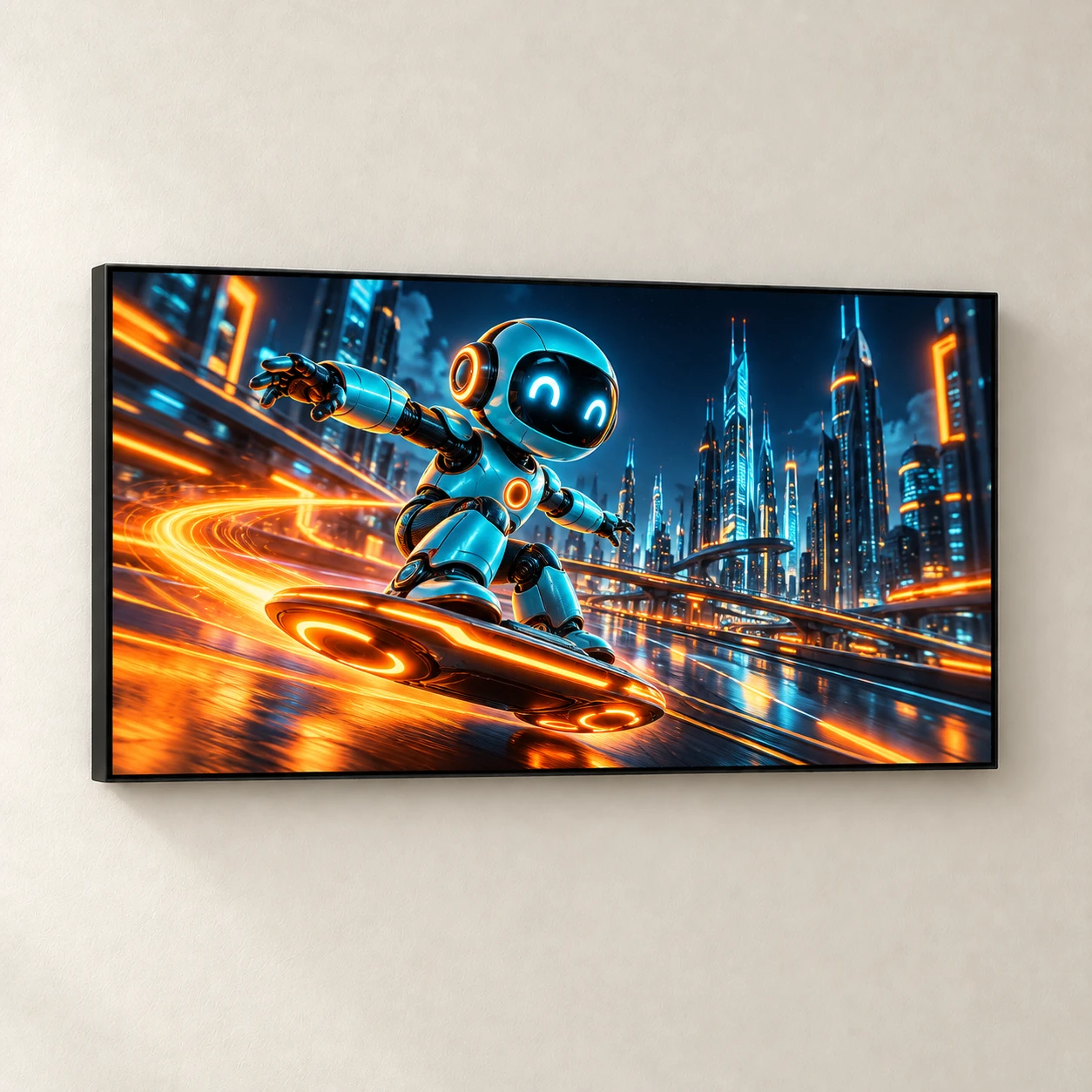

65-inch Wall-mounted LCD
65-inch 4K wall-mounted LCD signage for landscape or portrait placement with an Android 11 content system.
65 inches
LCD · Wall-mounted

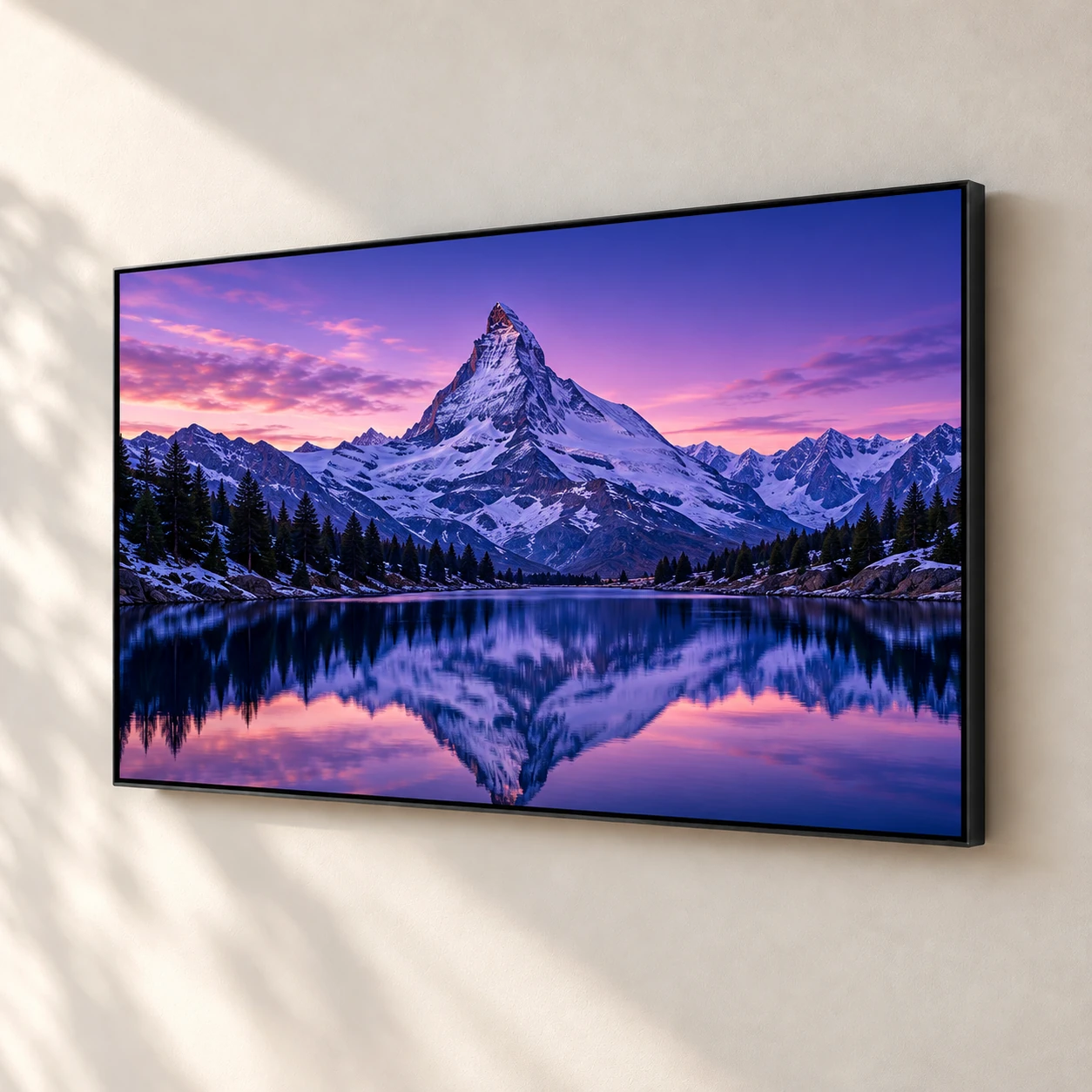

75-inch Wall-mounted LCD
75-inch 4K wall-mounted LCD signage for landscape or portrait placement with an Android 11 content system.
75 inches
LCD · Wall-mounted

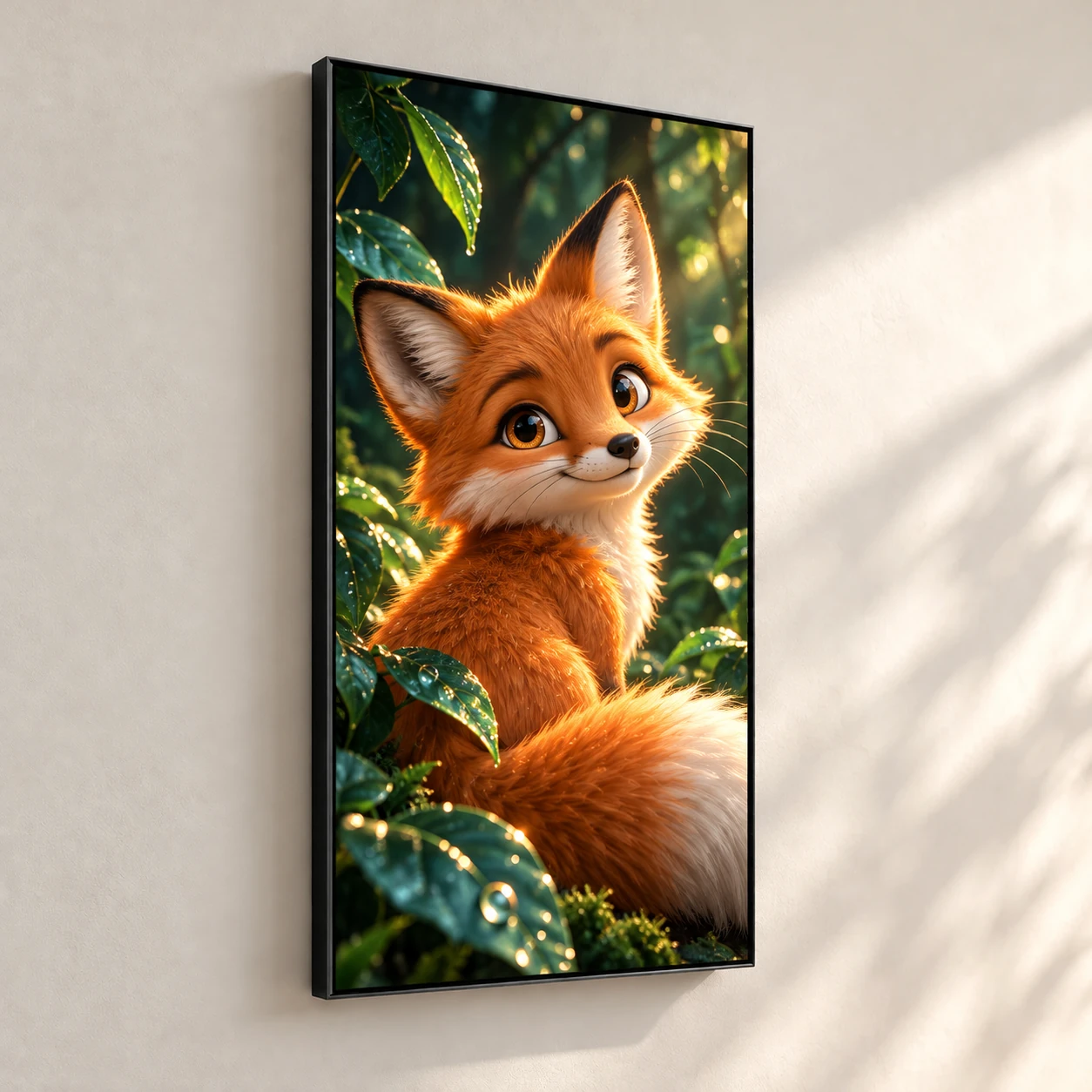

85-inch Wall-mounted LCD
85-inch 4K wall-mounted LCD signage for landscape or portrait placement with an Android 11 content system.
85 inches
LCD · Wall-mounted

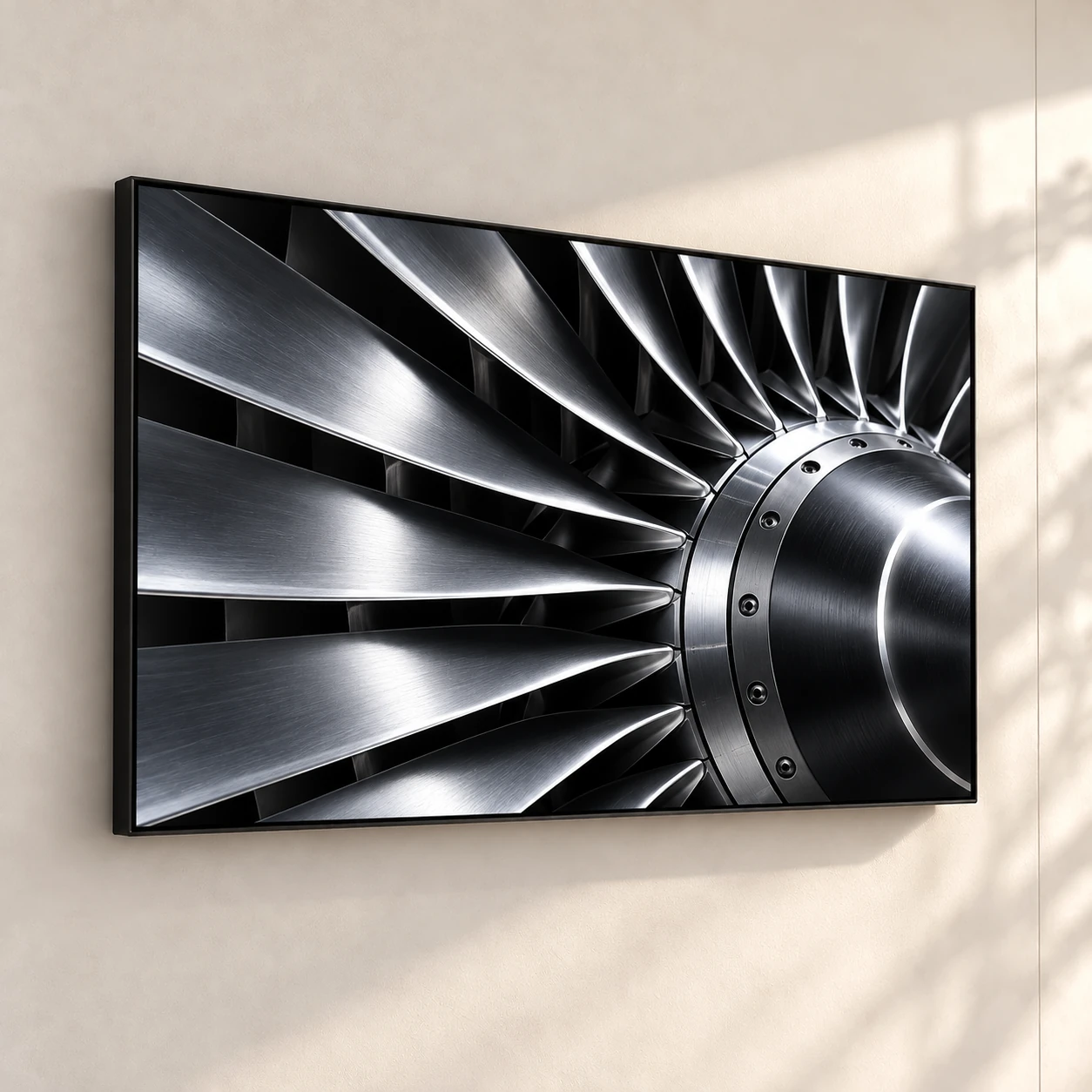

98-inch Wall-mounted LCD
98-inch 4K wall-mounted LCD signage for landscape or portrait placement with an Android 11 content system.
98 inchesRendered visuals illustrate appearance and applications. Confirm the final cabinet drawing, controller and operating requirements for your selected configuration.
LED POSTER MODEL COMPARISON
One format
Four pixel pitches
The four HB-X LED poster models share a 640 × 1920 mm active display area. A smaller pixel pitch provides more pixels within that same area.
Swipe or scroll horizontally to compare all four models
Dimensions in millimetres and weight in kilograms| Model details | HB-X seriesHB-X2.5 Inquire this model Download datasheet PDF ↓ | RecommendedHB-X1.86 Inquire this model Download datasheet PDF ↓ | HB-X seriesHB-X1.53 Inquire this model Download datasheet PDF ↓ | HB-X seriesHB-X1.25 Inquire this model Download datasheet PDF ↓ |
|---|---|---|---|---|
| 01 / Optical performance | ||||
| Pixel pitch | 2.5 mm | 1.86 mm | 1.538 mm | 1.25 mm |
| Display resolution | 256 × 768 px | 344 × 1032 px | 416 × 1248 px | 512 × 1536 px |
| Display technology | Direct-view LED · SMD 3-in-1 | Direct-view LED · SMD 3-in-1 | Direct-view LED · SMD 3-in-1 | Direct-view LED · SMD 3-in-1 |
| Protective process | GOB | GOB | GOB | GOB |
| Front protection | IP54 front | IP54 front | IP54 front | IP54 front |
| Brightness | 1000 nits | 1000 nits | 1000 nits | 1000 nits |
| Refresh rate | ≥ 3840 Hz | ≥ 3840 Hz | ≥ 3840 Hz | ≥ 3840 Hz |
| Viewing angle | 160° horizontal / 160° vertical | 160° horizontal / 160° vertical | 160° horizontal / 160° vertical | 160° horizontal / 160° vertical |
| 02 / Electrical & control | ||||
| Supply voltage | 110–240 V | 110–240 V | 110–240 V | 110–240 V |
| Peak power | 430 W | 450 W | 550 W | 650 W |
| Average power | 145 W | 150 W | 185 W | 220 W |
| Content publishing | App · USB · Wi-Fi · Ethernet | App · USB · Wi-Fi · Ethernet | App · USB · Wi-Fi · Ethernet | App · USB · Wi-Fi · Ethernet |
| Playback modes | Synchronous / asynchronous | Synchronous / asynchronous | Synchronous / asynchronous | Synchronous / asynchronous |
| Optional interfaces | HDMI · wireless 4G (configuration dependent) | HDMI · wireless 4G (configuration dependent) | HDMI · wireless 4G (configuration dependent) | HDMI · wireless 4G (configuration dependent) |
| Multi-unit joining | Supported · controller and layout to confirm | Supported · controller and layout to confirm | Supported · controller and layout to confirm | Supported · controller and layout to confirm |
| 03 / Mechanics & handling | ||||
| Active display size | 640 × 1920 mm | 640 × 1920 mm | 640 × 1920 mm | 640 × 1920 mm |
| Overall width × height | 646 × 2050 mm | 646 × 2050 mm | 646 × 2050 mm | 646 × 2050 mm |
| Weight | 43 kg | 43 kg | 43 kg | 43 kg |
| Mobile base | 4 swivel wheels | 4 swivel wheels | 4 swivel wheels | 4 swivel wheels |
| Module access | Magnetic front access | Magnetic front access | Magnetic front access | Magnetic front access |
Complete the specification with your quotation
Brightness, IP54 front protection and magnetic front access have been confirmed by the factory. Confirm measurement conditions, grayscale, LED package, controller brand and software, cabinet depth and mains frequency for your selected model. HDMI and 4G are optional; IP54 front protection is not a whole-cabinet outdoor rating.
The listed 43 kg is display weight. For a 2-in-1 flight case or other packing, request compatibility, units per case, packed dimensions, gross weight and CBM before calculating freight.
Request drawings & packing specificationsSPECIFICATION-BASED FACTORY QUOTATION
What shapes your quotation
Compare the same display configuration and delivery scope. Open a factor to review what it changes and what to share.
Display format & detail
- Why it matters
- LED pixel pitch and resolution, or LCD panel size and resolution, define the display you are comparing.
- What to share
- Share the viewing distance, screen content and preferred model. Ask for selection help if the model is not decided.
Quantity & joined layout
- Why it matters
- Unit count and a standalone or joined-screen layout change the hardware, content map and total project scope.
- What to share
- Send the quantity and intended arrangement, plus the available space or a floor plan if known.
Controller & content workflow
- Why it matters
- Playback, synchronization, inputs, software and optional connectivity must match the selected display configuration.
- What to share
- Explain how content will be published and whether you need HDMI, a named controller, cloud publishing or multi-screen playback.
Packing, spares & inspection
- Why it matters
- Flight cases or crates, units per package, spare parts and acceptance checks must be included in the quotation.
- What to share
- Name the packing and inspection requirements. Confirm packed dimensions and gross weight before comparing freight.
Destination & order terms
- Why it matters
- The destination, transport method, delivery scope and agreed order schedule affect the complete landed project.
- What to share
- Provide the country, city or port and target date. Confirm the trade term and what the quoted delivery includes.
Final price, availability, production timing and freight are confirmed for your selected configuration in the written quotation.
