2–5 m planning range
Measure the nearest and farthest positions. Review sample media at the proposed pitch; this range is not a certified minimum viewing distance.
KEDA LED / INDUSTRY SOLUTION
LED poster displays for auto dealerships
Bring vehicle imagery, launch content and feature explainers into the showroom. Specify a freestanding LED display around viewing positions, glazing and vehicle access.
MODEL TO DISCUSSHB-X1.86
The model and distance range are planning starting points, subject to a project assessment. Imagery is independently generated and illustrates placement or product appearance.
01 / TECHNICAL ASSESSMENT
Specify the display around the space
Assess the actual lighting
Review showroom glazing, overhead lighting and daylight exposure. Match brightness to a site assessment rather than assuming a standard setting.

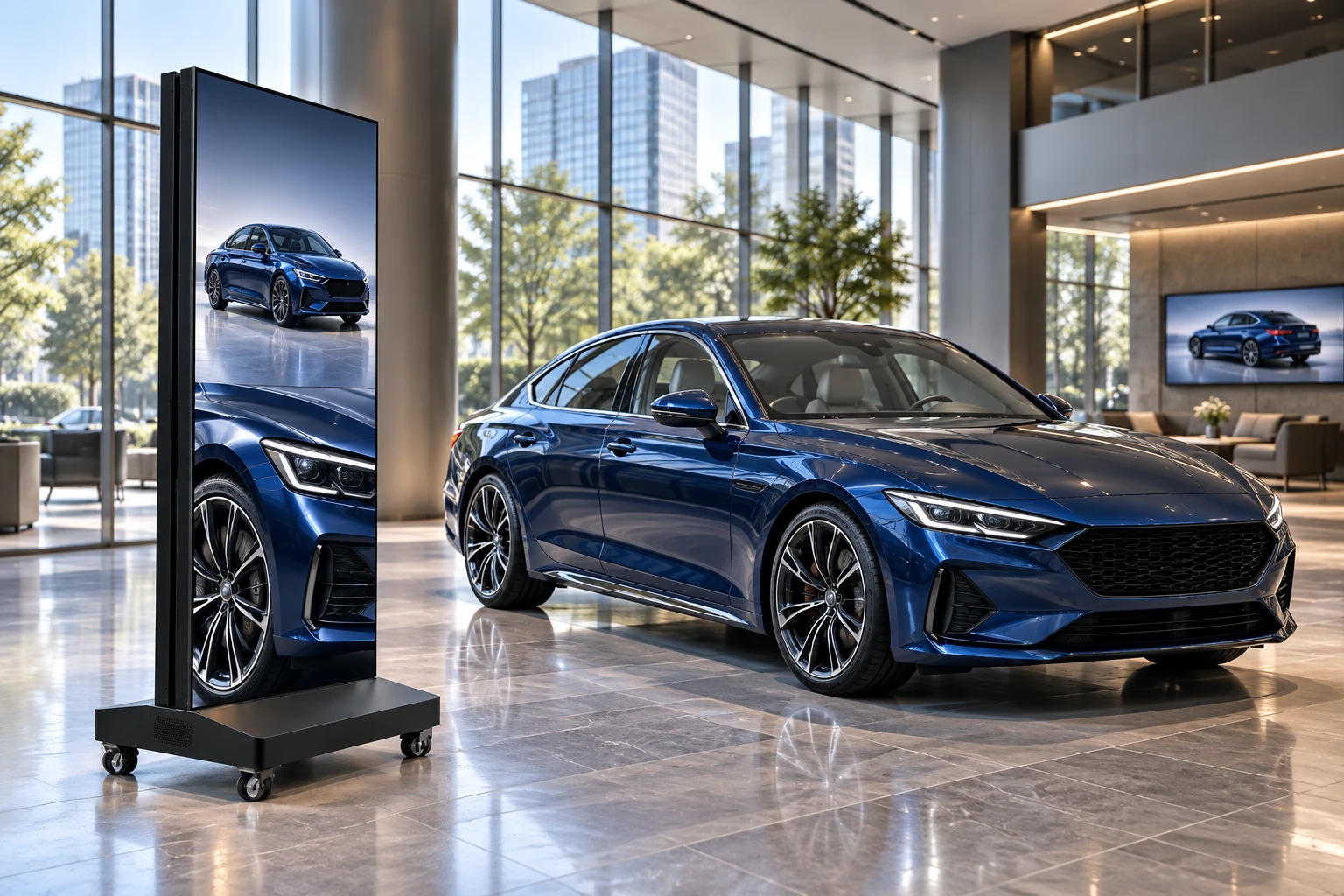

Standalone poster beside a vehicle display zone
Confirm base stability, cables, power and control. Joined units also need an approved layout and content map.
02 / APPLICATION PLANNING
Resolve the project details early
Large glazing and changing light
Showroom contrast varies with daylight and overhead lighting. Share the intended location, window orientation and sample vehicle footage to define a suitable display specification.
Clearance around the vehicle
Keep the poster and its power cable outside doors, walkways and vehicle movement routes. Plan the 646 × 2050 mm cabinet footprint alongside the final base dimensions.
Feature content at a glance
Use high-contrast vehicle imagery and readable feature summaries. The HB-X1.86 active canvas is 344 × 1032 pixels; prepare artwork for that portrait layout rather than scaling small print.
03 / SOURCE SPECIFICATIONS
A closer look at HB-X1.86
- Pixel pitch
- 1.86 mm
- Display resolution
- 344 × 1032 px
- Active display size
- 640 × 1920 mm
- Protective process
- GOB
- Refresh rate
- ≥ 3840 Hz
- Mobile base
- 4 swivel wheels
- Peak power
- 450 W
- Average power
- 150 W
Values above are from the supplied HB-X brochure. Power figures are listed specifications; actual consumption depends on content and settings. Brightness, controller, packing and installation details are confirmed for the selected configuration.
04 / BUYER QUESTIONS
Auto Dealership project questions
Which pitch should a dealership start with?
HB-X1.86 is a useful starting model to discuss for a showroom. Its listed pitch is 1.86 mm with a 344 × 1032 pixel active canvas. Actual suitability depends on nearest viewing distance, media detail, lighting and budget.
Can the poster be moved between vehicle displays?
The brochure lists four swivel wheels and a 43 kg unit weight. Plan a level movement route, power isolation, base stability and cable management, and confirm handling instructions before relocation.
Can several units show the same launch content?
The brochure supports synchronous and asynchronous playback and multi-unit joining. Confirm the controller, content map, connections and synchronization method for the proposed number of units. HDMI is configuration dependent.
What should I send with the showroom inquiry?
Include a floor plan or location photos, nearest and farthest viewing positions, window lighting, required quantity, sample content and delivery destination. The quote button preselects Auto dealership and HB-X1.86.
FACTORY DIRECT / PROJECT QUOTATION
Turn the location into a clear specification
Send the viewing positions, location photos, sample content, quantity and destination. The quote form opens with the auto dealership application and HB-X1.86 model selected.
